Dynamic compaction is a ground improvement technique that densifies the soil by repeatly pounding it with a high energy pounder.

Presentation and key elements

What is dynamic compaction and why do we use it?

The technique was invented and developed by Mr. Louis MENARD. Since the late 60s, the Menard group has applied this technique to thousands of sites for very different types of structures and conditions (port and airport platforms, heavy storage, buildings, landfills…) to reduce settlement, mitigate liquefaction, stabilize or treat hydraulic fill, limit lateral earth pressure behind quay walls, etc. The dynamic compaction technique achieves deep ground densification using the dynamic effects of high energy impacts resulting from the drop of large pounders.

Basic principle of dynamic compaction

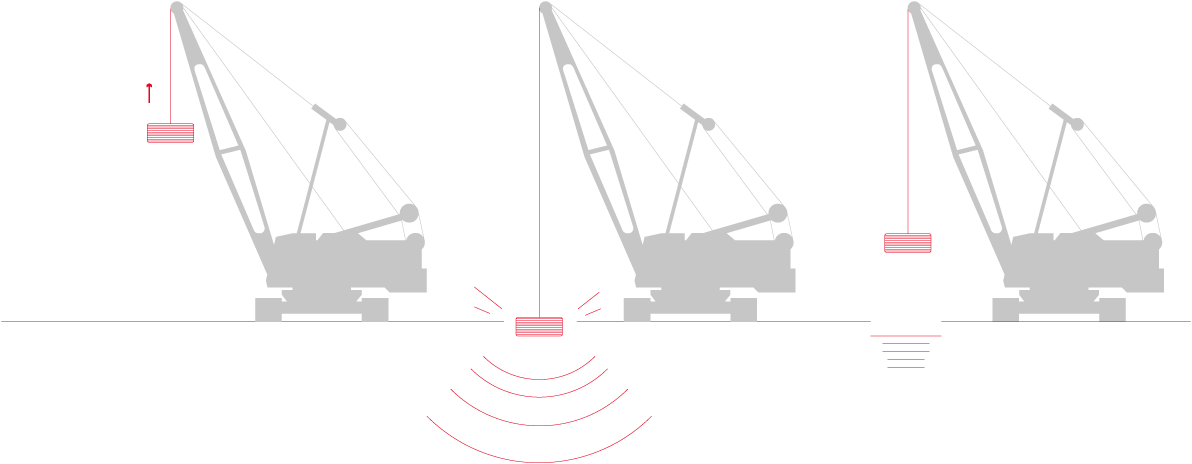

The basic principle of the technique is a transmission of high energy waves through a compressible soil layer in order to improve its geotechnical properties at depth.  Dynamic compaction is applicable to any type of granular soil. This technique is particularly well-adapted to nonorganic heterogeneous fill, made ground and reclamation areas with varying characteristics, even with the presence of large blocks. Dynamic compaction is effective in both unsaturated and saturated soils below the water table.

Execution of dynamic compaction

Dynamic compaction requires the use of pounders weighing between 12 to 40 tonnes released in free fall from a height of 10 to 40 meters. The arrangement of the impact points and the other parameters of the treatment energies, phasing, rest periods- depend on the characteristics of the soil to be treated and on the results obtained from the initial trial zone.

CMC techniques for soil

Q&A on Dynamic compaction

There are structures 20 meters from your worksite; can we use dynamic compaction?

We systematically monitor the vibrations generated on neighbouring structures throughout the project. If need be, we take preventive steps uch as reducing the height of release, installing vibration mitigation trenches. We sharply reduce the vibrations transmitted to neighbouring structures, even at less than 20 m.

For an urban or a small worksite, a Rapid Impact Compaction system can be cost-effective. The Rapid Impact Compaction technique allows us to compact the soil using the same technique as conventional dynamic compaction. The difference is that depths of treatment generally limited to about 5 to 6 meters.
